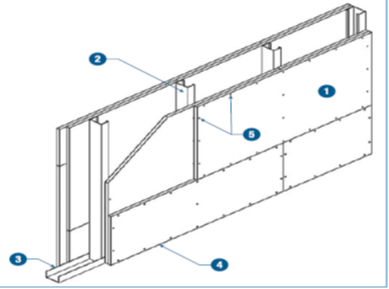

TECHNICAL DATA

1. For FRL of -/120/120

   2 layers of PROMATECT 50 board 9mm thick board on either side of steel frame

2. Steel studs 64mm x 35mm x 0.5mm at nominal 610mm centres. For heights above 4000mm, please contact Promat Technical Department.

3. Top and bottom tracks 64mm x 0.5mm fixed to substrate using 40mm x M6 masonry anchors at 500mm centres

4. PROMASEAL AN Acrylic Sealant, required only where gaps between board and substrate occur.

5. Self-tapping screws at nominal 200mm centres
